Link Class Reference

#include <link.h>

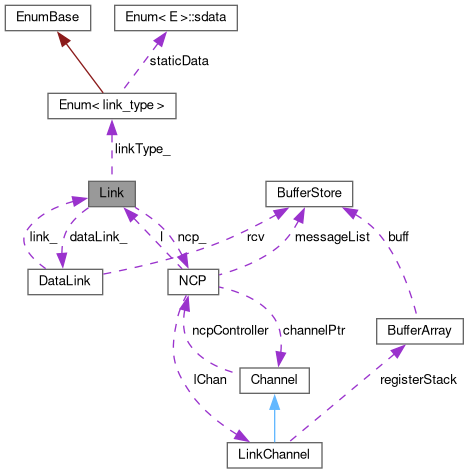

Collaboration diagram for Link:

Public Types
enum	link_type { LINK_TYPE_UNKNOWN = 0 , LINK_TYPE_SIBO = 1 , LINK_TYPE_EPOC = 2 }

Public Member Functions
	Link (const char *fname, int baud, NCP *ncp, bool noDSRCheck, unsigned short verbose, const int cancellationFd)
	Construct a new link instance.
	~Link ()
	Disconnects from device and destroys instance.
void	send (const BufferStore &buff)
	Send a PLP packet to the Peer.
bool	stuffToSend ()
	Query outstanding packets.
bool	hasFailed ()
	Query connection failure.
void	reset ()
	Reset connection and attempt to reconnect to the peer.
void	purgeQueue (int channel)
	Purge all outstanding packets for a specified remote channel.
Enum< link_type >	getLinkType ()
	Get the current link type.
int	getSpeed ()
	Get current speed of the serial device.

Private Member Functions
void	receive (BufferStore buf)
	Effectively a delegate method that accepts data from our DataLink instance.
void	transmit (BufferStore buf)
void	sendAck (int seq, Enum< link_type > linkType)
void	sendReqReq ()
void	sendReqCon ()
void	sendReq (Enum< link_type > linkType)
void	multiAck (struct timeval)
void	retransmit ()
void	transmitHoldQueue (int channel)
void	transmitWaitQueue ()
void	purgeAllQueues ()
unsigned long	retransTimeout ()

Private Attributes
pthread_t	checkThreadId_
pthread_mutex_t	queueMutex_
NCP *const	ncp_
DataLink *	dataLink_ = nullptr
int	txSequence_ = 1
int	rxSequence_ = -1
int	seqMask_ = 7
int	maxOutstanding_ = 1
unsigned long	conMagic_
const unsigned short	verbose_
bool	failed_
Enum< link_type >	linkType_
std::vector< AckWaitQueueElement >	ackWaitQueue
std::vector< BufferStore >	holdQueue_
std::vector< BufferStore >	waitQueue_
bool	xoff_ [256]
const int	cancellationFd_
	Used to signal cancellation.

Friends
class	DataLink
void *	expire_check (void *arg)

Detailed Description

Definition at line 62 of file link.h.

Member Enumeration Documentation

link_type

enum Link::link_type

Enumerator
LINK_TYPE_UNKNOWN
LINK_TYPE_SIBO
LINK_TYPE_EPOC

Definition at line 65 of file link.h.

Constructor & Destructor Documentation

Link()

Link::Link	(	const char *	fname,
		int	baud,
		NCP *	ncp,
		bool	noDSRCheck,
		unsigned short	verbose,
		const int	cancellationFd )

Construct a new link instance.

Parameters

fname	Name of serial device.
baud	Speed of serial device.
ncp	The calling NCP instance.
noDSRCheck	Disable checking DSR (for buggy serial drivers)
verbose	Verbosity (for debugging/troubleshooting)
cancellationFd	File descriptor that can be used to signal that the Link should shutdown.

Definition at line 87 of file link.cc.

~Link()

Link::~Link

(

)

Disconnects from device and destroys instance.

Definition at line 108 of file link.cc.

Member Function Documentation

getLinkType()

Enum< Link::link_type > Link::getLinkType

(

)

Get the current link type.

Returns

One of LINK_TYPE_... values.

Definition at line 658 of file link.cc.

getSpeed()

int Link::getSpeed

(

)

Get current speed of the serial device.

Returns

The current speed in baud.

Definition at line 662 of file link.cc.

hasFailed()

bool Link::hasFailed

(

)

Query connection failure.

Returns

true, if the peer could not be contacted or did not response, false if everything is ok.

Definition at line 648 of file link.cc.

multiAck()

void Link::multiAck ( struct timeval refstamp )

private

Definition at line 583 of file link.cc.

purgeAllQueues()

void Link::purgeAllQueues ( )

private

Definition at line 141 of file link.cc.

purgeQueue()

void Link::purgeQueue

(

int

channel

)

Purge all outstanding packets for a specified remote channel.

Parameters

channel

The of the channel for which to remove outstanding packets.

Definition at line 148 of file link.cc.

receive()

void Link::receive ( BufferStore buf )

private

Effectively a delegate method that accepts data from our DataLink instance.

Called on the DataLink's internal thread.

Definition at line 233 of file link.cc.

reset()

void Link::reset

(

)

Reset connection and attempt to reconnect to the peer.

Definition at line 118 of file link.cc.

retransmit()

void Link::retransmit ( )

private

Definition at line 595 of file link.cc.

retransTimeout()

unsigned long Link::retransTimeout ( )

private

Definition at line 114 of file link.cc.

send()

void Link::send

(

const BufferStore &

buff

)

Send a PLP packet to the Peer.

Parameters

buff	The contents of the PLP packet.

Definition at line 133 of file link.cc.

sendAck()

void Link::sendAck ( int seq, Enum< link_type > linkType )

private

Definition at line 165 of file link.cc.

sendReq()

void Link::sendReq ( Enum< link_type > linkType )

private

Definition at line 221 of file link.cc.

sendReqCon()

void Link::sendReqCon ( )

private

Definition at line 182 of file link.cc.

sendReqReq()

void Link::sendReqReq ( )

private

Definition at line 202 of file link.cc.

stuffToSend()

bool Link::stuffToSend

(

)

Query outstanding packets.

Returns

true, if packets are outstanding (not yet acknowledged), false otherwise.

Definition at line 640 of file link.cc.

transmit()

void Link::transmit ( BufferStore buf )

private

Definition at line 503 of file link.cc.

transmitHoldQueue()

void Link::transmitHoldQueue ( int channel )

private

Definition at line 466 of file link.cc.

transmitWaitQueue()

void Link::transmitWaitQueue ( )

private

Definition at line 485 of file link.cc.

Friends And Related Symbol Documentation

DataLink

friend class DataLink

friend

Definition at line 139 of file link.h.

expire_check

void * expire_check ( void * arg )

friend

Definition at line 43 of file link.cc.

Member Data Documentation

ackWaitQueue

std::vector<AckWaitQueueElement> Link::ackWaitQueue

private

Definition at line 174 of file link.h.

cancellationFd_

const int Link::cancellationFd_

private

Used to signal cancellation.

Should never be read.

Definition at line 184 of file link.h.

checkThreadId_

pthread_t Link::checkThreadId_

private

Definition at line 160 of file link.h.

conMagic_

unsigned long Link::conMagic_

private

Definition at line 169 of file link.h.

dataLink_

DataLink* Link::dataLink_ = nullptr

private

Definition at line 164 of file link.h.

failed_

bool Link::failed_

private

Definition at line 171 of file link.h.

holdQueue_

std::vector<BufferStore> Link::holdQueue_

private

Definition at line 175 of file link.h.

linkType_

Enum<link_type> Link::linkType_

private

Definition at line 172 of file link.h.

maxOutstanding_

int Link::maxOutstanding_ = 1

private

Definition at line 168 of file link.h.

ncp_

NCP* const Link::ncp_

private

Definition at line 163 of file link.h.

queueMutex_

pthread_mutex_t Link::queueMutex_

private

Definition at line 161 of file link.h.

rxSequence_

int Link::rxSequence_ = -1

private

Definition at line 166 of file link.h.

seqMask_

int Link::seqMask_ = 7

private

Definition at line 167 of file link.h.

txSequence_

int Link::txSequence_ = 1

private

Definition at line 165 of file link.h.

verbose_

const unsigned short Link::verbose_

private

Definition at line 170 of file link.h.

waitQueue_

std::vector<BufferStore> Link::waitQueue_

private

Definition at line 176 of file link.h.

xoff_

bool Link::xoff_[256]

private

Definition at line 177 of file link.h.

---

The documentation for this class was generated from the following files:

• lib/link.h
• lib/link.cc
